Case GAMDIAS ATLAS M1 WHITE

• Brand: GAMDIAS
• Model: ATLAS M1 WHITE
• Color: White
• Type: ATX Mid Tower Computer Case
• Material: Steel frame with tempered glass side panel

Design and Build:

• Dimensions: 392 × 210 × 440 mm (L × W × H)
• Weight: Approximately 5.2 kg
• Form Factor: Stylish and modern design with a tempered glass side panel to showcase internal components
• Available Colors: White (with RGB lighting)

Cooling and Ventilation:

• Pre-installed Fans:
  • Two 120mm ARGB fans (supporting customizable lighting) at the front.
  • One 120mm fan at the rear.
• Fan Support:
  • Supports up to 6 fans (3 at the front, 2 at the top, 1 at the rear).
• Liquid Cooling Support:
  • Supports up to 240mm radiator at the front and 120mm at the rear.
• Airflow: Open design at the front and top for excellent airflow and cooling efficiency.

Motherboard Compatibility:

• Supports motherboards of the following form factors:
  • ATX
  • Micro ATX
  • Mini ITX

Storage:

• Hard Drive Mounts:
  • Supports up to 2 x 3.5” HDDs.
  • Supports up to 2 x 2.5” SSDs.
• Storage Drive Support:
  • Supports 2 x 3.5” HDDs.
  • Supports 2 x 2.5” SSDs.

Graphics Card Compatibility:

• Graphics Card Support: Compatible with graphics cards up to 330mm in length.

Ports and Connectivity:

• Front Ports:
  • 2 x USB 3.0
  • 2 x USB 2.0
  • 3.5mm Audio In/Out
  • Power button
  • RGB lighting control button
• RGB Lighting: Built-in RGB LED lighting in the front fans, supporting customizable RGB effects.

Cable Management:

• Internal Design: Includes cable management openings for a tidy setup, improving airflow and system organization.

Cooling and Ventilation:

• Top/Rear: Space for a 120mm fan (included).
• Front: Space for a 120mm or 140mm fan (included).

Power Supply Support (PSU):

• PSU Compatibility: Supports full-size ATX power supplies with good cable management.

Additional Features:

• Top and Bottom Vents: Ensure optimal airflow to keep the system cool.
• Easy Installation: Interior design allows easy installation of large components such as large coolers and graphics cards.

Materials (Internal and External):

• High-quality steel frame.
• Front panel with mesh for improved cooling efficiency.
• Tempered glass side panel to showcase internal components.

Expansion Support:

• Ample space to support additional components with flexible expansion options.

Aesthetic Features:

• RGB Lighting: Customizable ARGB lighting for a stylish and dynamic look in your PC build.

FUNCTIONALITY WITH SEAMLESS VISUALS

The ATLAS M1 Series is available in black and white editions. The case features perforated air vents with three built-in ARGB PWM fans for optimal airflow and a customizable monitor for real-time system information. Enjoy the benefit of seamless tempered glass panels providing stunning visuals of your build.

POWERFUL VENTILATION

The ATLAS M1 WH is built with perforated air vents throughout the case, vents perforated on the side panel, PSU chamber, and back exhaust to ensure superior airflow configurations.

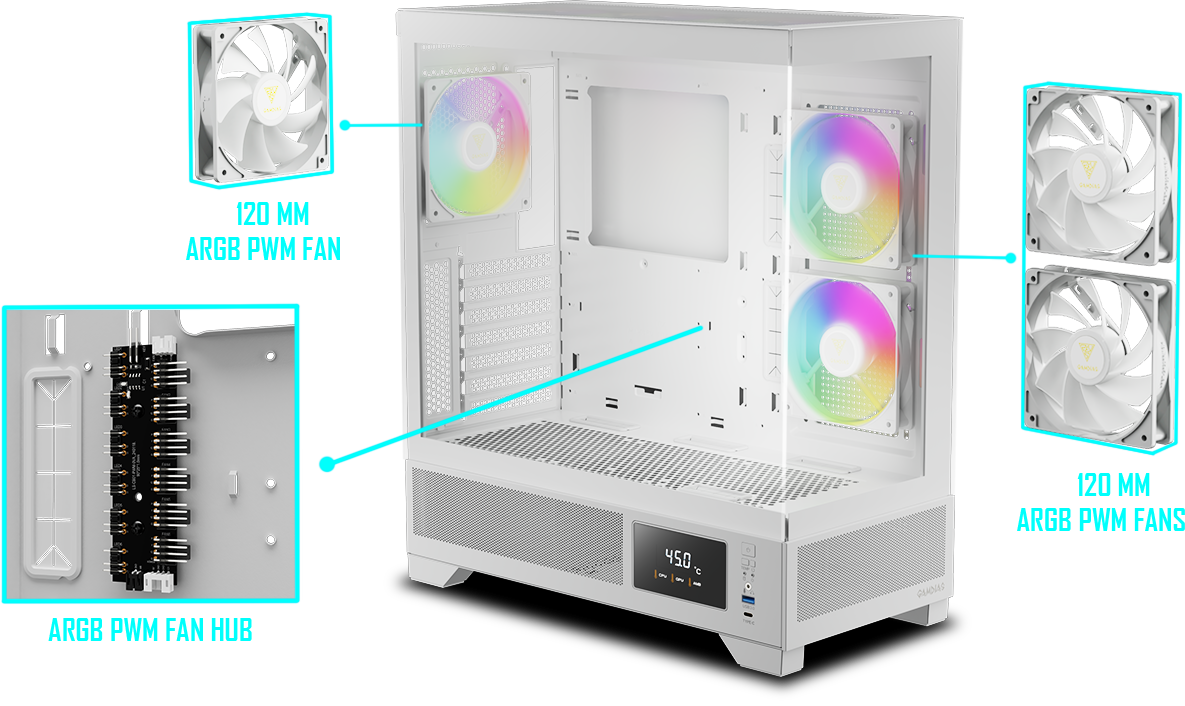

3 BUILT-IN ARGB PWM FANS

The case comes with three white ARGB PWM fans, with two preinstalled 120mm reverse intake fans on the side and one 120mm fan on the rear exhaust, providing excellent airflow and stunning ARGB visuals via the motherboard or LED control button.

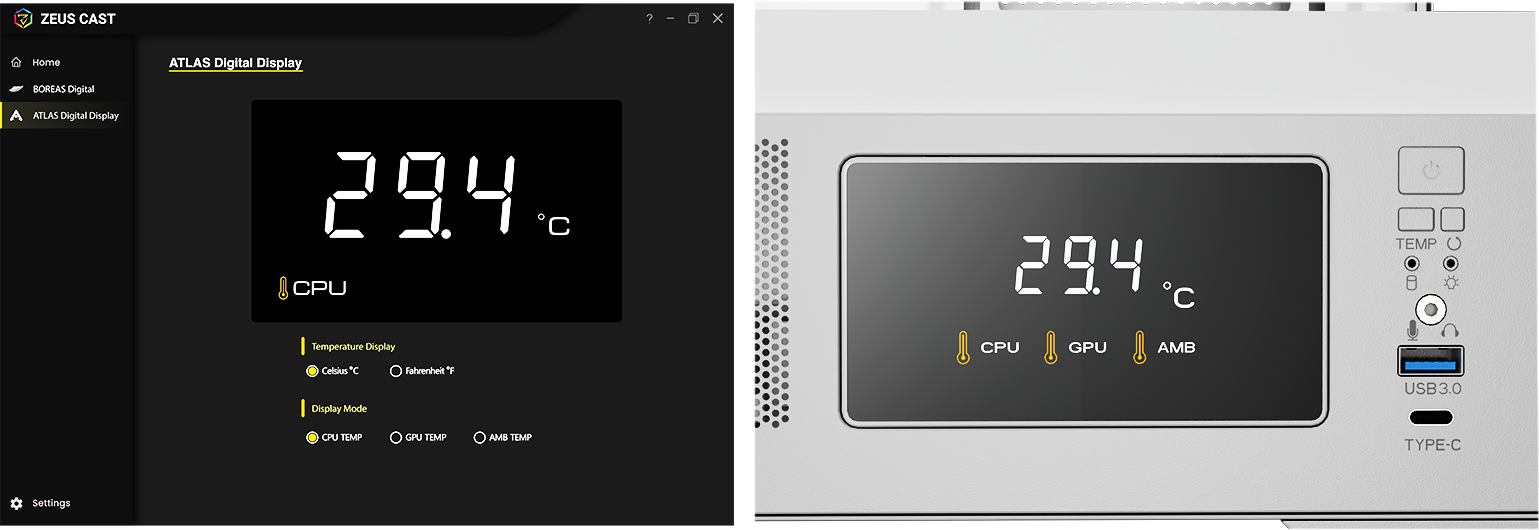

MONITOR REAL-TIME STATUS

The embedded monitor displays real-time system information including CPU, GPU, and ambient temperature adjustable via ZEUS CAST software. Users can also switch between CPU/GPU/AMB/OFF modes through the I/O port.

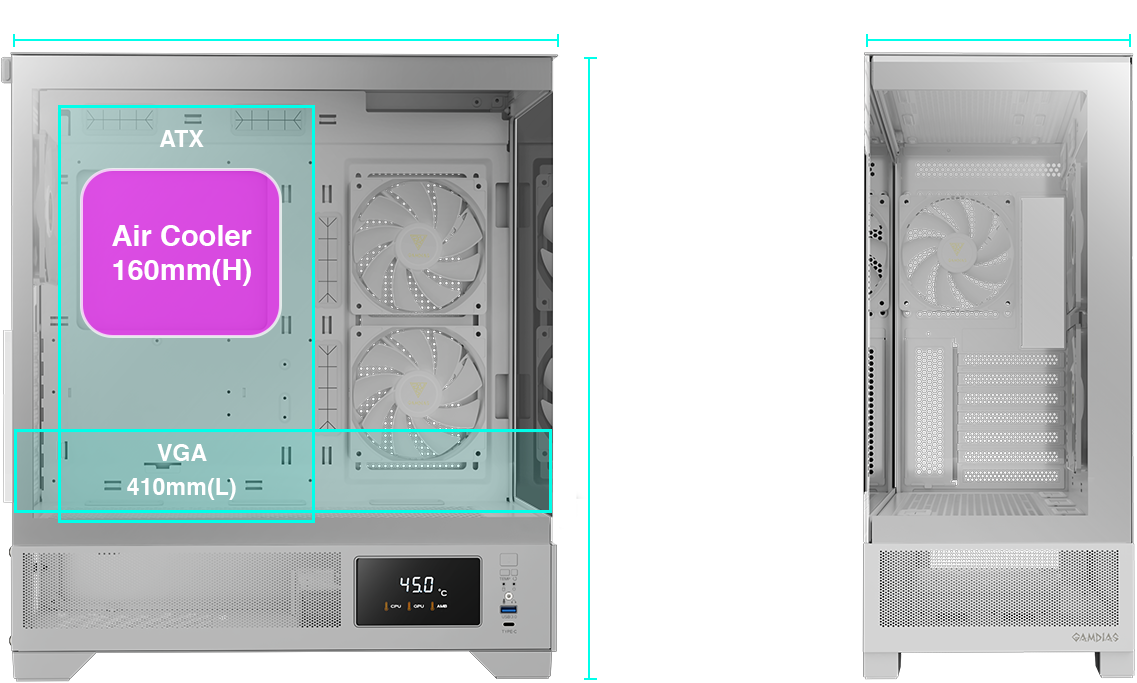

INTERIOR ACCOMMODATION

The case offers the option to house up to ATX motherboards, air coolers with 160mm RAM clearance, and VGA cards with lengths up to 410mm.

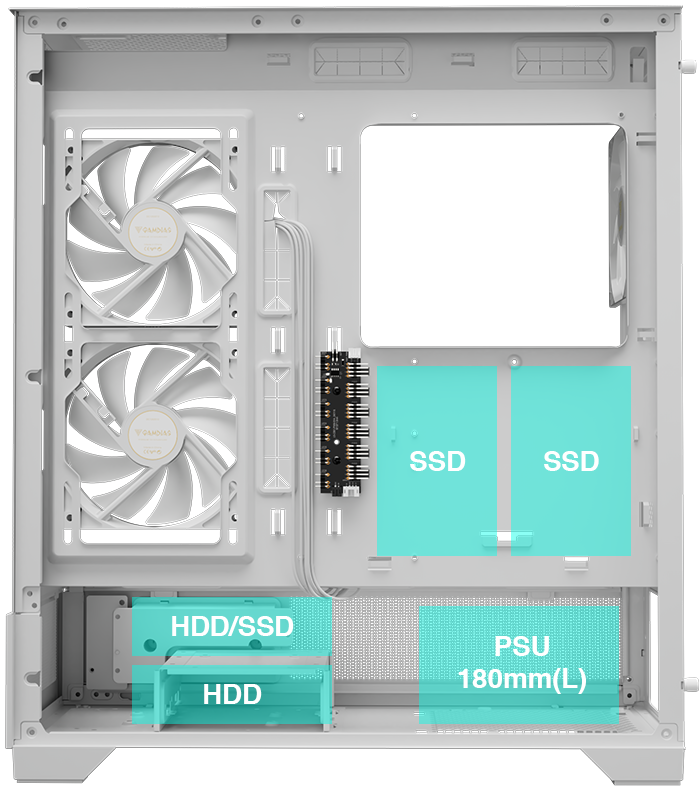

STORAGE COMPATIBILITY

The ATLAS M1 Series supports installation of up to 4x 2.5" or 3 x 2.5"+1x 3.5" and can accommodate PSU lengths up to 180mm.

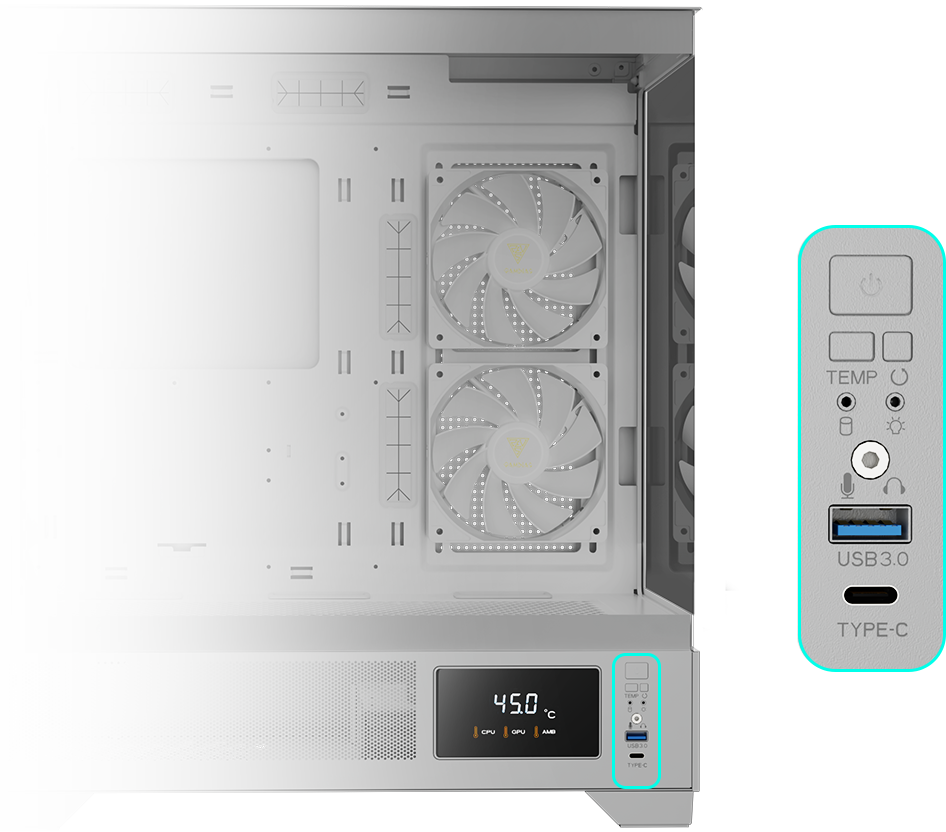

CONCISE I/O DESIGN

The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, a USB 3.0 port, a fan LED control, a monitor mode switch, and an integrated audio jack.
