أداء لا مثيل له مع التغيرات التكنولوجية السريعة ، تتبع GIGABYTE دائمًا أحدث الاتجاهات وتزود العملاء بميزات متقدمة وأحدث التقنيات. تم تجهيز لوحات جيجابايت الرئيسية بحل طاقة مطور ، وأحدث معايير التخزين وإمكانية الاتصال الممتازة لتمكين أداء الألعاب المحسن.

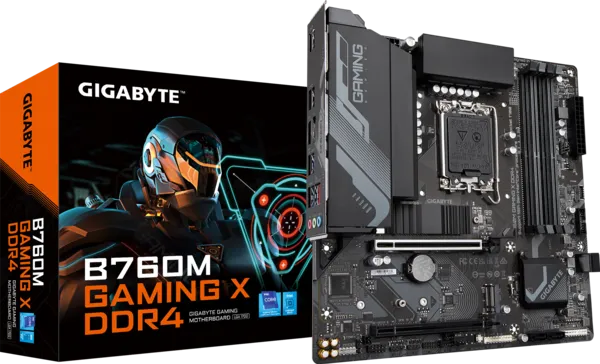

B760M GAMING X DDR4 (rev. 1.0)
GIGABYTE
6,699.00 EGP
الكميَّة
not_interested غير متوفر حالياً

ابلغني حين يتوفر

·      مقبس Intel® Socket LGA 1700 يدعم معالجات الجيل الثالث عشر والثاني عشر

·      أداء لا مثيل له Hybrid 8 + 1 + 1 Phases Digital VRM Solution

·      ثنائي القناة DDR4 4 * دعم وحدة الذاكرة DIMMs XMP

·      تخزين الجيل التالي 2 * موصلات PCIe 4.0 x4 M.2

·      تصميم حراري متقدم وواقي حراري M.2 لضمان استقرار طاقة VRM وأداء M.2 SSD

·      فتحة EZ-Latch PCIe 4.0x16 مع تصميم سريع التحرير

·      شبكات سريعة 2.5GbE LAN

·      توصيل موسع أمامي USB-C® بسرعة 10 جيجابت / ثانية ، DP ، HDMI

·      Smart Fan 6 تتميز بمستشعرات متعددة لدرجة الحرارة ، موصلات هجينة للمروحة مع FAN STOP

·      Q-Flash Plus قم بتحديث BIOS بدون تثبيت وحدة المعالجة المركزية والذاكرة وبطاقة الرسومات

GIGABYTE™الماركه
B760M GAMING X DDR4الموديل
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processorsالبروسيسور
L3 cache varies with CPU
Intel® B760 Express Chipsetالشرائح
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modulesالميموري
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Integrated Graphics Processor-Intel® HD Graphics support:الجيرافيك المدمج
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Realtek® Audio CODECالصوت
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)الشبكه
CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)فتحات التوسعه
Chipset:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)واجهه التخزين
Chipset:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x 24-pin ATX main power connectorموصلات الإدخال / الإخراج الداخلية
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
3 x USB 3.2 Gen 1 portsموصلات اللوحه الخلفيه
5 x USB 2.0/1.1 ports
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
iTE® I/O Controller Chipوحدة تحكم الإدخال / الإخراج
Norton® Internet Security (OEM version)البرامج المجمعه
LAN bandwidth management software
Support for Windows 11 64-bitنظام التشغيل
Support for Windows 10 64-bit
Micro ATX Form Factor; 24.4cm x 24.4cmعامل الشكل
12 monthالضمان
B760M GAMING X DDR4 (rev. 1.0)
ابلغني حين يتوفر

البيانات

العلامة التجارية
GIGABYTE™
الموديل
B760M GAMING X DDR4
البروسيسور
L3 cache varies with CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
كارت الشاشة
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
متطلبات نظام التشغيل
Support for Windows 11 64-bit Support for Windows 10 64-bit
شريحة المعالجة
Intel® B760 Express Chipset
الذاكرة
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Storage
CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
الصوت
2/4/5.1/7.1-channel Support for S/PDIF Out
Realtek® Audio CODEC High Definition Audio
الضمان
12 month
Form factor
Micro ATX Form Factor; 24.4cm x 24.4cm
