يتم ضمان الأداء الذي لا مثيل له للوحات GIGABYTE من خلال التصميم الحراري المبتكر والمحسن لضمان أفضل استقرار لوحدة المعالجة المركزية ومجموعة الشرائح و SSD ودرجات الحرارة المنخفضة في ظل التحميل الكامل وأداء الألعاب.

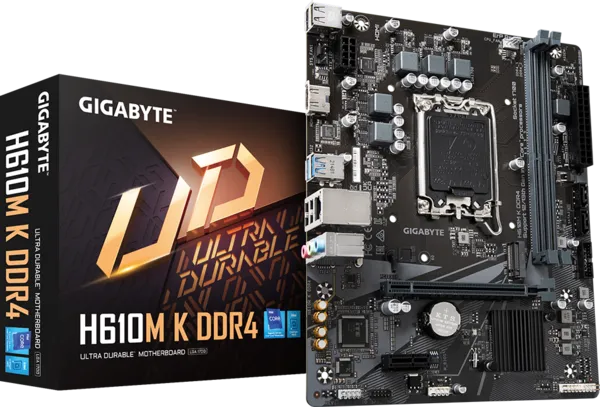

H610M K DDR4
GIGABYTE

مقبس Intel®LGA 1700: جاهز لمعالجات Intel® من الجيل الثالث عشر والثاني عشر

تبريد شامل: مبدد حرارة PCH ومروحة Xpert

اتصال فائق السرعة: فتحة M.2 بسرعة 32 جيجابت في الثانية، ودعم Realtek 1 جيجابت Ethernet وUSB 3.2 Gen 1

5X Protection III: وسائل حماية متعددة للأجهزة لتوفير الحماية الشاملة

GIGABYTE™البراند
H610M K DDR4الموديل
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*البروسيسور
ntel® H610 Chipsetشرائح

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

 Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

الذاكرة

1 x D-Sub port

1 x HDMI® port

Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Supports 4K@60Hz as specified in HDMI 2.1.

الرسومات على متن الطائرة

Realtek 7.1 Surround Sound High Definition Audio CODECالصوت
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)التخزين
Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4 x SATA 6Gb/s connectors
Chipset:2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)يو اس بي
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
1 x 24-pin ATX main power connector

موصلات الإدخال/الإخراج الداخلية/

و

منافذ الإدخال/الإخراج في اللوحة الخلفية

1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
Windows® 11 64-bit, Windows® 10 64-bitنظام التشغيل
mATX Form Factorشكل العامل
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
12 monthالضمان



H610M K DDR4

البيانات

العلامة التجارية
GIGABYTE
الموديل
H610M K DDR4
البروسيسور
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
كارت الشاشة
1 x D-Sub port 1 x HDMI® port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports 4K@60Hz as specified in HDMI 2.1.
USB
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
متطلبات نظام التشغيل
Windows® 11 64-bit, Windows® 10 64-bit
شريحة المعالجة
ntel® H610 Chipset
الذاكرة
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list
Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Storage
CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
الصوت
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Form factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm
الضمان
12 month
